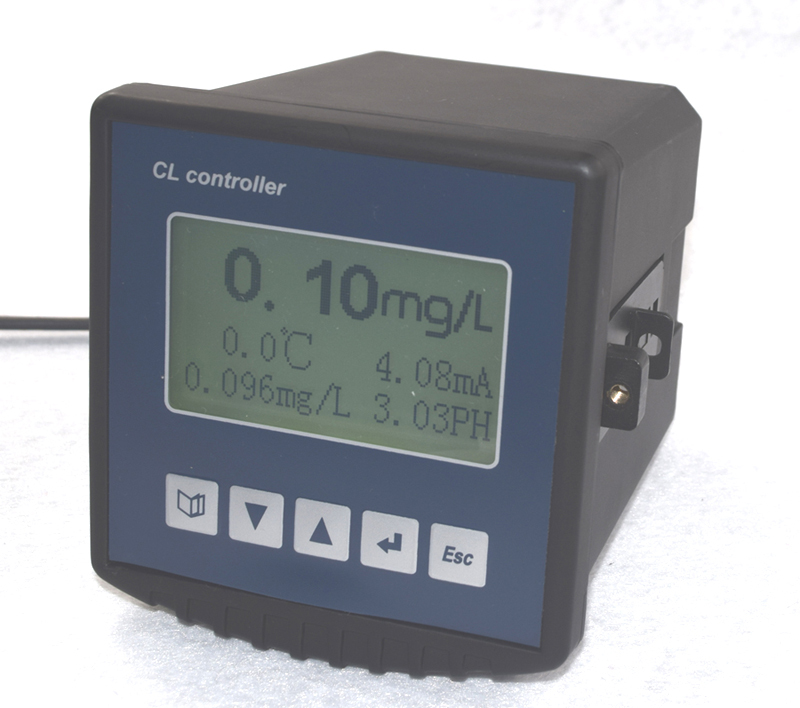

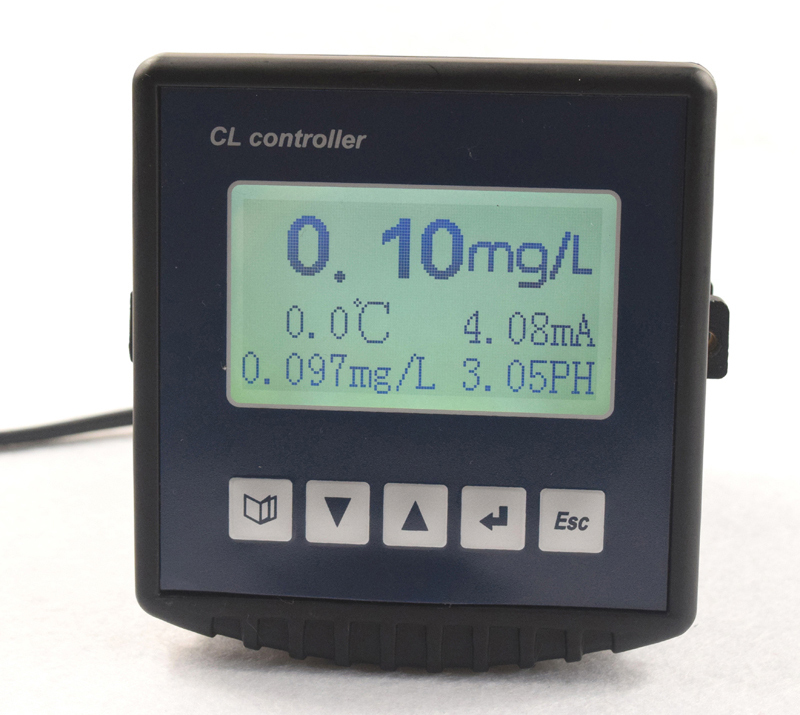

Online Water Quality Residual Chlorine Analyzer
Industrial online Residual chlorine analyzer CL-9650 is online Residual chlorine and HOCL, PH monitoring
and controlling analyzer.
To measure Residual chlorine, Hypochlorous acid (HOCl), PH and Temperature value.
Application: widely used in drinking water, bottling water, electricity, medicine, chemical, food, pulp &paper,
swimming pool, water treatment industry.

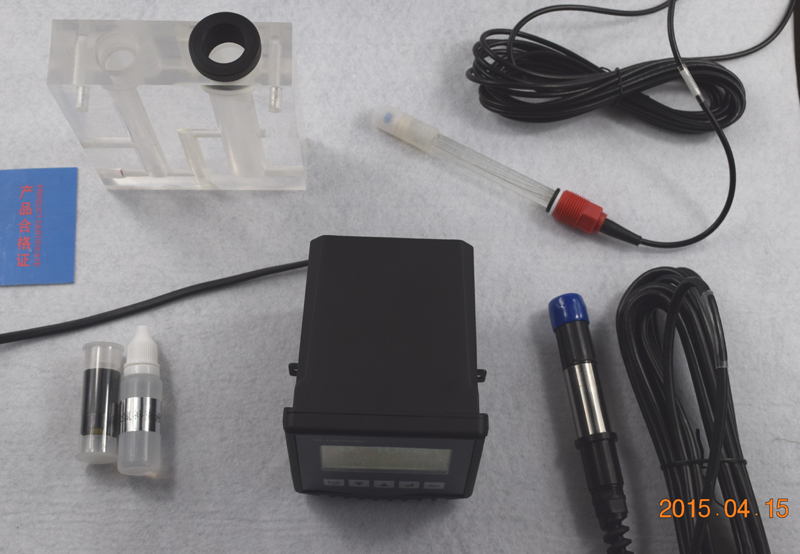

Residual Chlorine analyzer CL-9650 matched free chlorine and Ph electrode:
Function Model | CL-9650 Residual Chlorine analyzer |
Range | Free chlorine :0-20.00 mg/L(ppm) Hypochlorous acid (HOCl) :0-10.00 mg/L(ppm) PH value :0-14pH, Temperature: 0-60 ℃ |
Accuracy | Free chlorine : ±1% or ±0.01 mg/L, Hypochlorous acid (HOCl) :±1% o ±0.01 mg/L, PH value :±0.02pH, Temperature: ±0.5℃ |
Temp. Comp. | Manual/automatic pH compensation feature(0-14) and temperature compensation(0~60℃) |

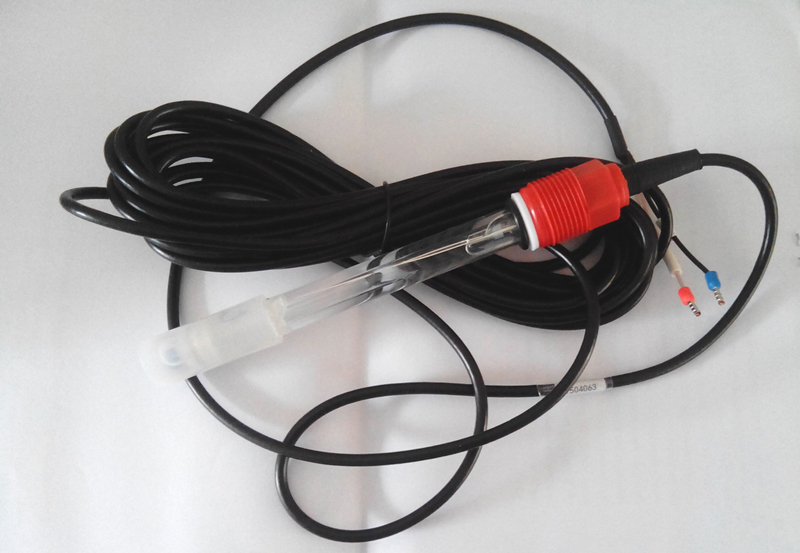

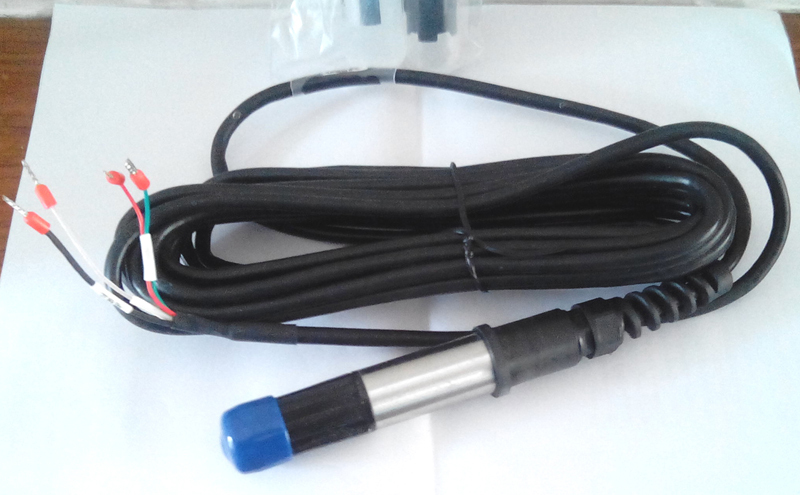

Electrode | Free chlorine Sensor,PH sensor |
Display | LCD display |
Operation Temp. | 0~60℃ |
Current output | isolation 4~20mA |
Control output | ON/OFF High limit,low limit relay |
Power | AC 220V±10% 50/60Hz |
Working environment | Ambient Temp. 0~50℃, Relative Humidity ≤90% |
Overall dimensions | 96×96×115mm(H×W×D) |
Hole size | 91×91mm(H×W) |
Installation Mode | Panel mounted(embedded) |
Residual Chlorine analyzer are packed into strong carton which is suitable for long distance transport, color label is
available as per request on the carton.
